Ultrafiltration Membrane Systems for Water Treatment – Ideal Reverse Osmosis Pretreatment Solution
To Our Customers:
We provide fully customizable equipment tailored to your specific requirements. Please share your technical parameters, process flow charts, or any other demands. We guarantee a quick response within 12 hours via email or online chat.
Technical Parameters
| Type | Inlet Pipe | Outlet Pipe | Cleaning Pipe | Overflow Pipe | L | S |
|---|---|---|---|---|---|---|
| ZL350X600 | DN100 | DN150 | DN15 | DN80 | 760 | 735 |
| ZL610X610 | DN150 | DN200 | DN15 | DN80 | 885 | 748 |
| ZL610X1220 | DN200 | DN250 | DN20 | DN150 | 1085 | 1360 |
| ZL610X1830 | DN250 | DN300 | DN25 | DN150 | 1235 | 2025 |
| ZL800X1830 | DN300 | DN350 | DN25 | DN150 | 1330 | 2025 |
Product Description

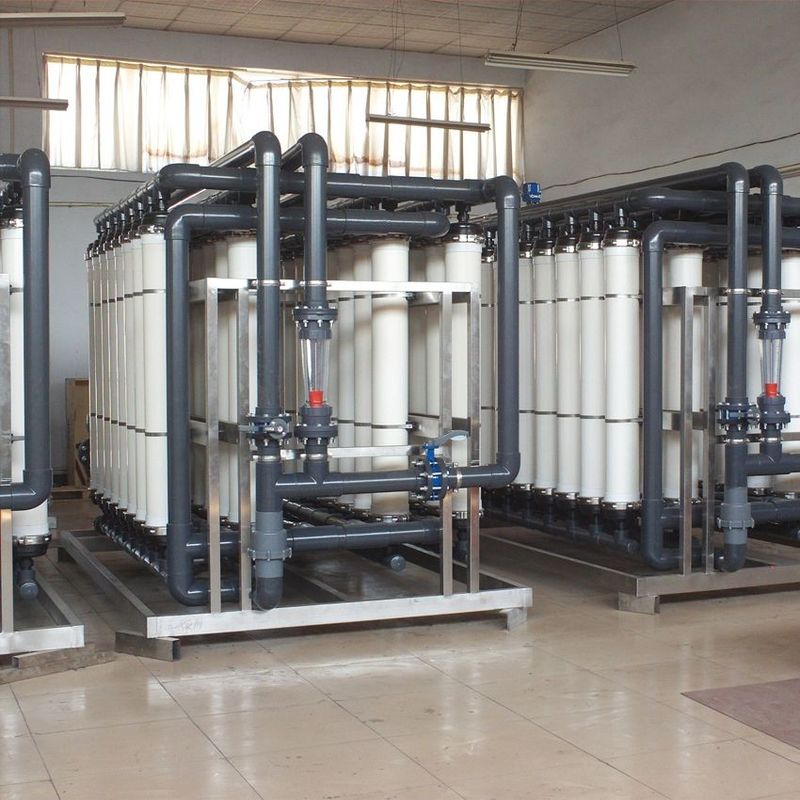

Ultrafiltration (UF) membrane modules are formed by combining numerous hollow membrane fibers into a single unit capable of integration into water treatment systems. These modules are available in three main configurations: internally pressurized, externally pressurized, and submerged types.
In submerged UF systems, filtration is driven by the pressure difference between a vacuum inside the membrane tubes and atmospheric pressure. This configuration is particularly suitable for UF or microfiltration (MF) membranes with moderate filtration accuracy requirements.
Internally pressurized UF modules are widely preferred in water treatment applications due to their superior flushing effectiveness during backwashing, ensuring more uniform flow distribution across the membrane surface compared to externally pressurized designs.
Applications
Ultrafiltration membranes are extensively used in:
Reverse osmosis (RO) pretreatment
Drinking water purification
Water reuse and recycling systems
Sterilization and turbidity removal in beverage and alcohol production
Pyrogen removal in pharmaceutical manufacturing
Concentration processes in food and pharmaceutical industries
Key Features
High-Efficiency Separation: Provides excellent purification, separation, and concentration performance.
Robust Structure: High mechanical strength with strong resistance to fiber breakage.
Gentle Processing: Operates at room temperature, making it ideal for sensitive materials such as pharmaceuticals and fruit juices.
Hygienic Design: Constructed with high-grade sanitary 304 stainless steel and fully enclosed piping, complying with GMP and FDA standards.
Durable & Reusable: Offers strong chemical resistance, anti-aging properties, and can be repeatedly cleaned for long-term use.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
